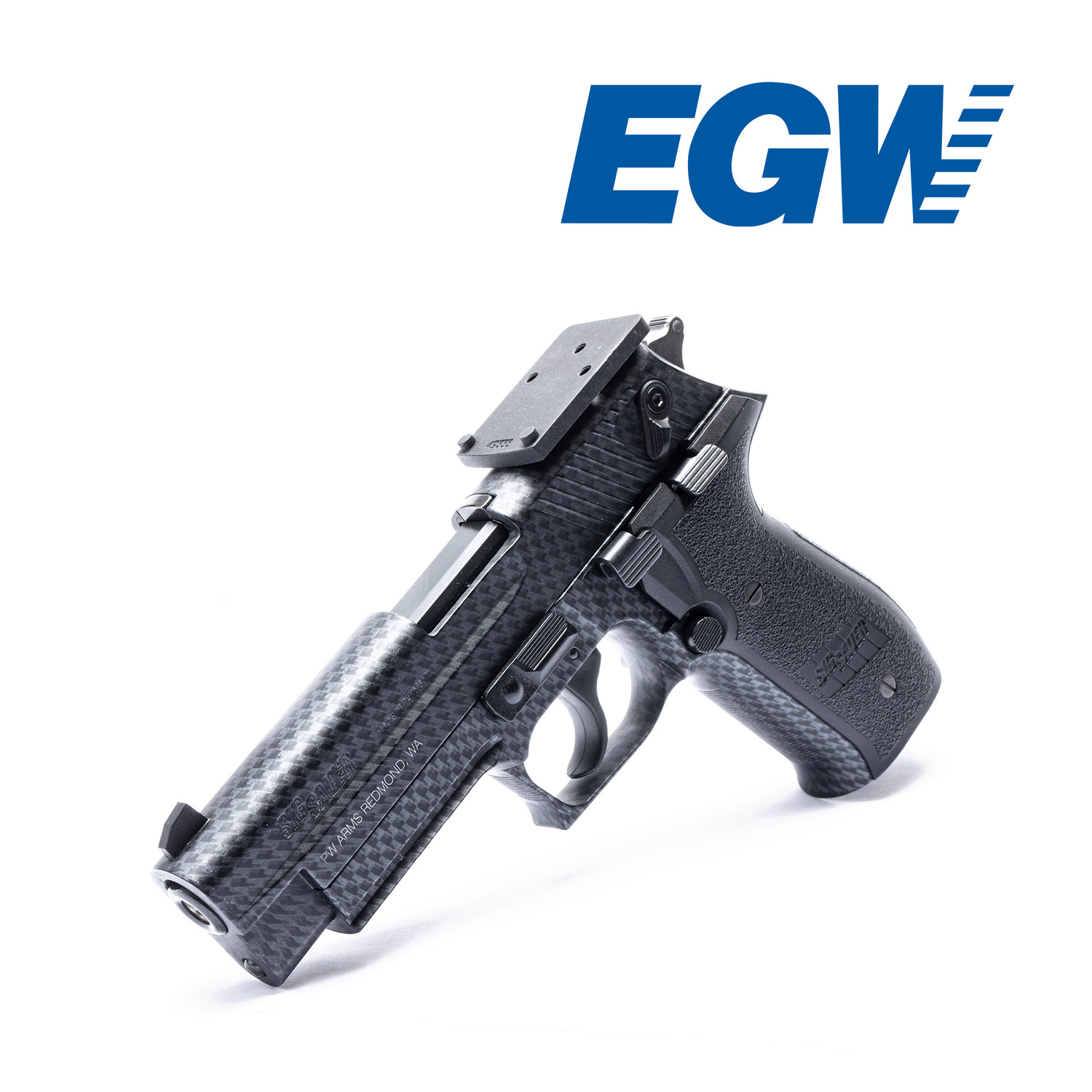

This mount has been designed by EGW specifically for the GSG Firefly

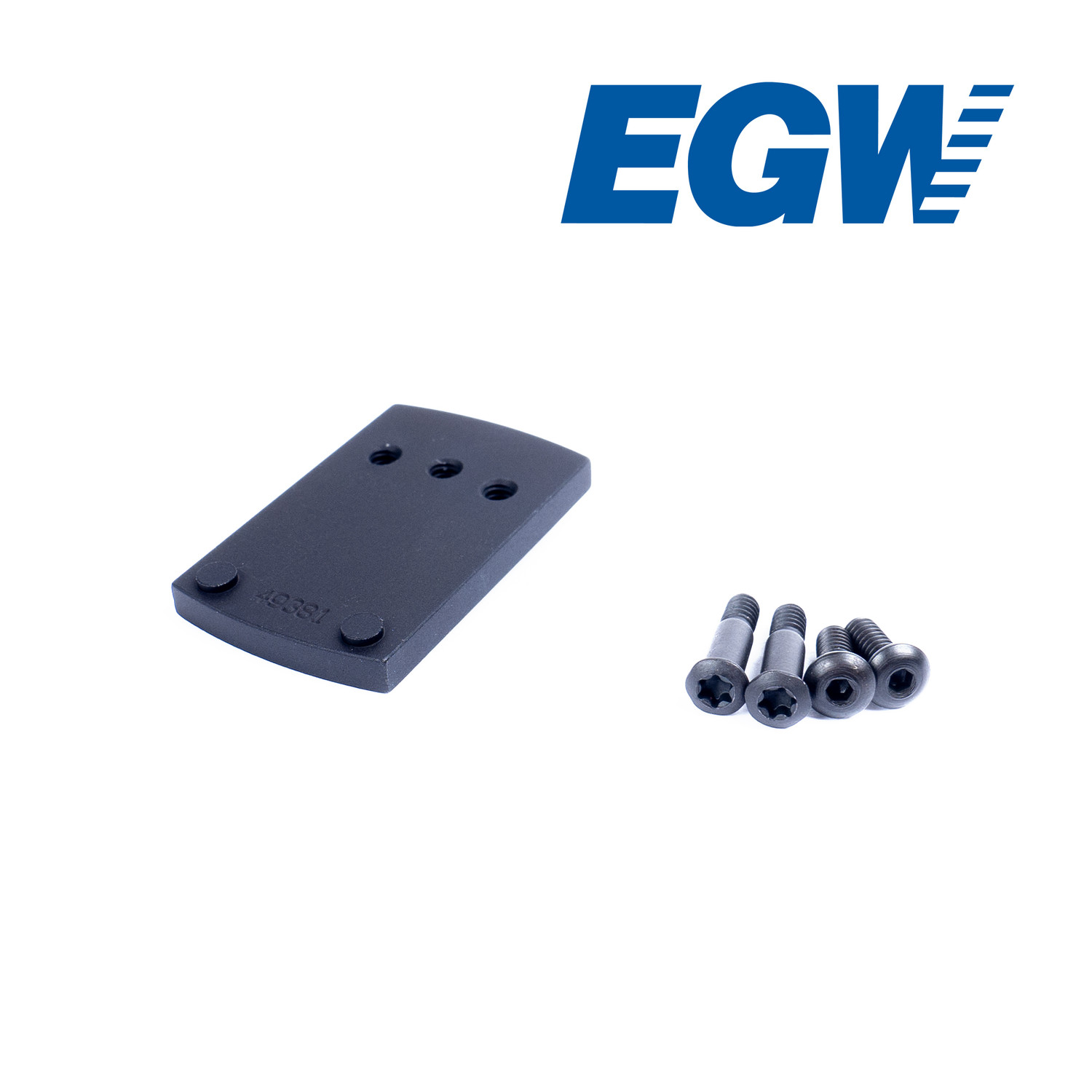

The screws to mount the red dot to the plate are provided at no extra cost. We recommend using 15 in/lbs.
Specifications:
Overall Length: 1.95″
Overall Width: .99″
Mounting Hardware: (2) 6-32 Button Head Screws
Scope Mount Color: Black Hardcoat Anodized Type III
Material: 7075 Aluminum

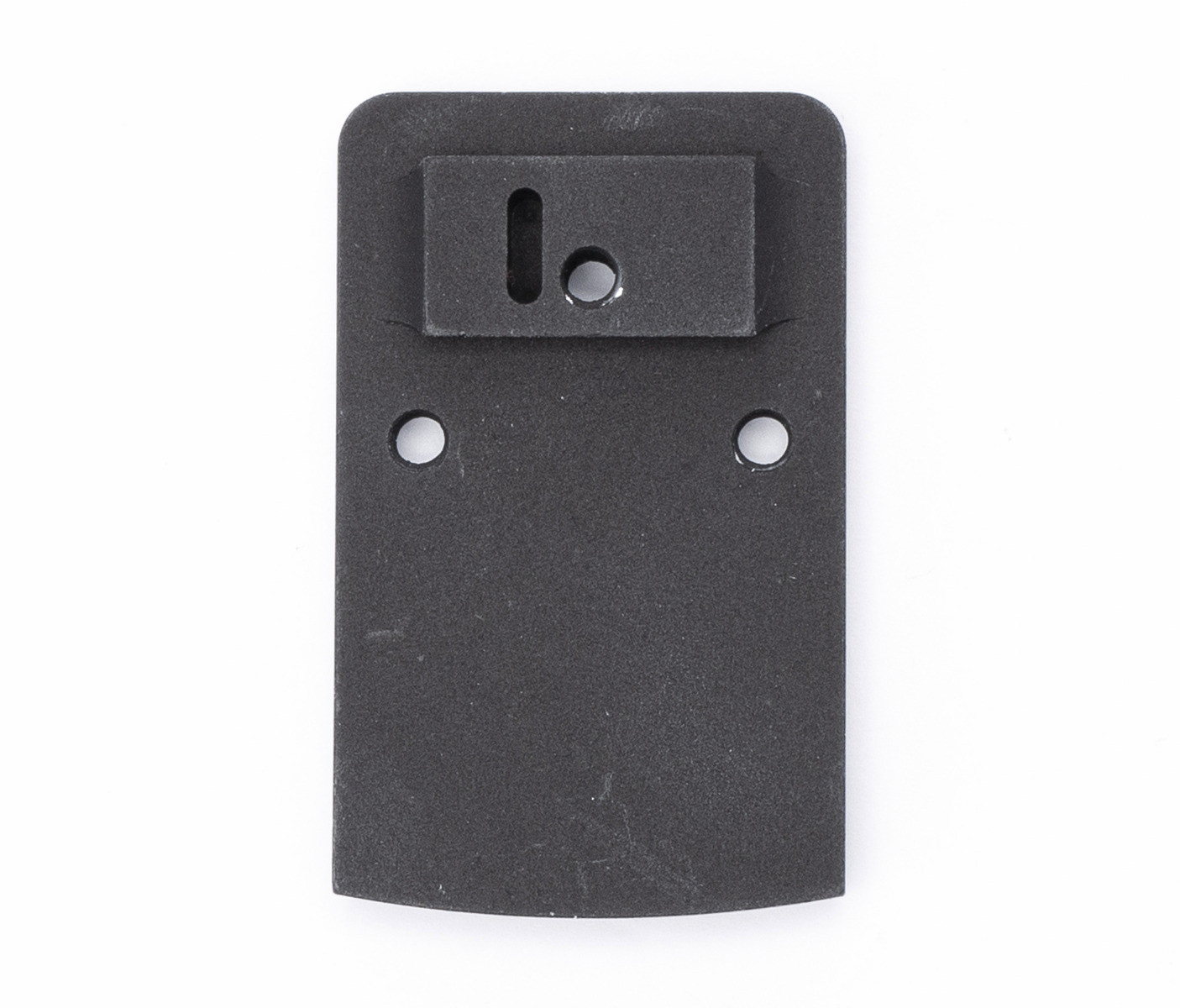

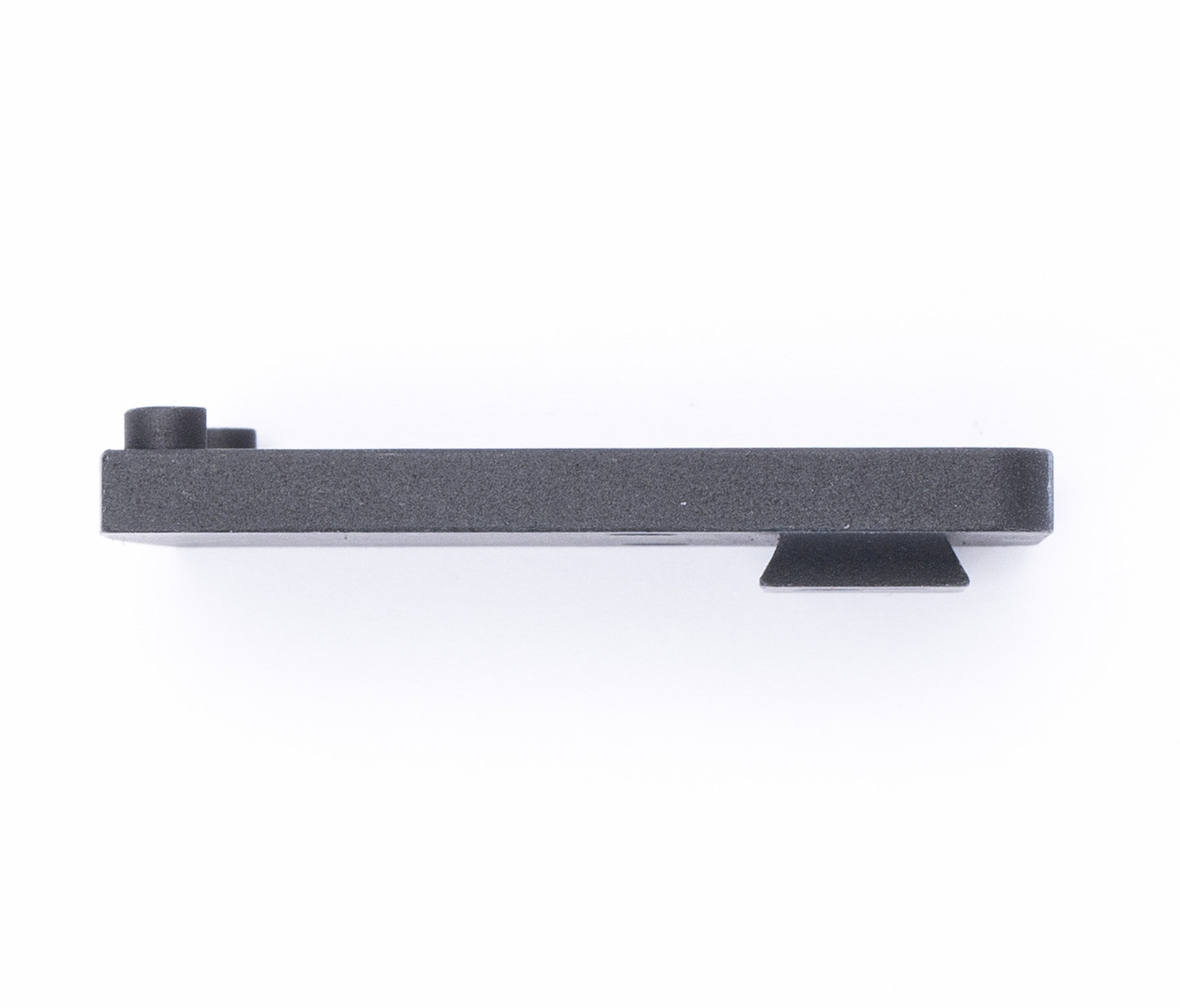

This is a press fit mount. Utilization of a sight pusher tool may be required.
SKU 49381 : Fits:

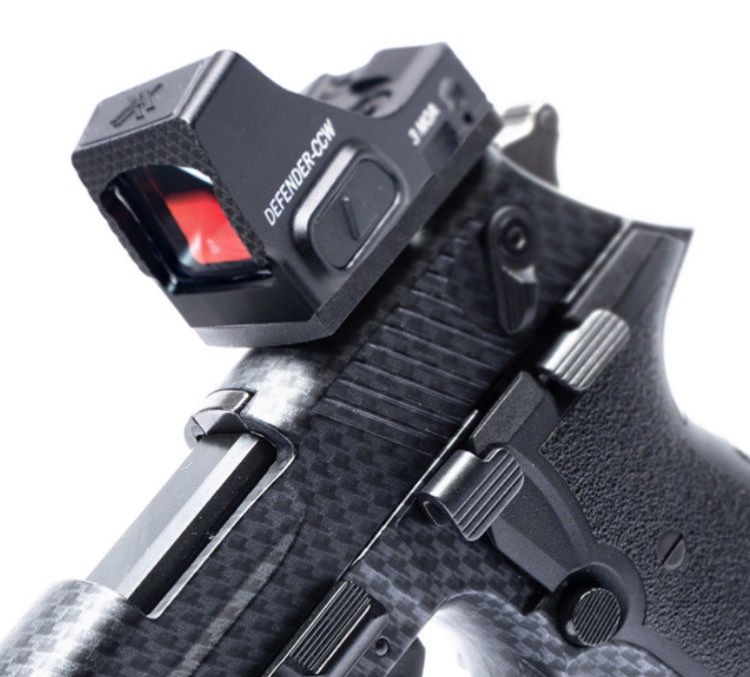

Vortex Defender Series
Holosun 407K
Holosun 507K
Holosun EPS
Shield RMS
Shield RMSc
Shield SMS
and sights sharing that footprint

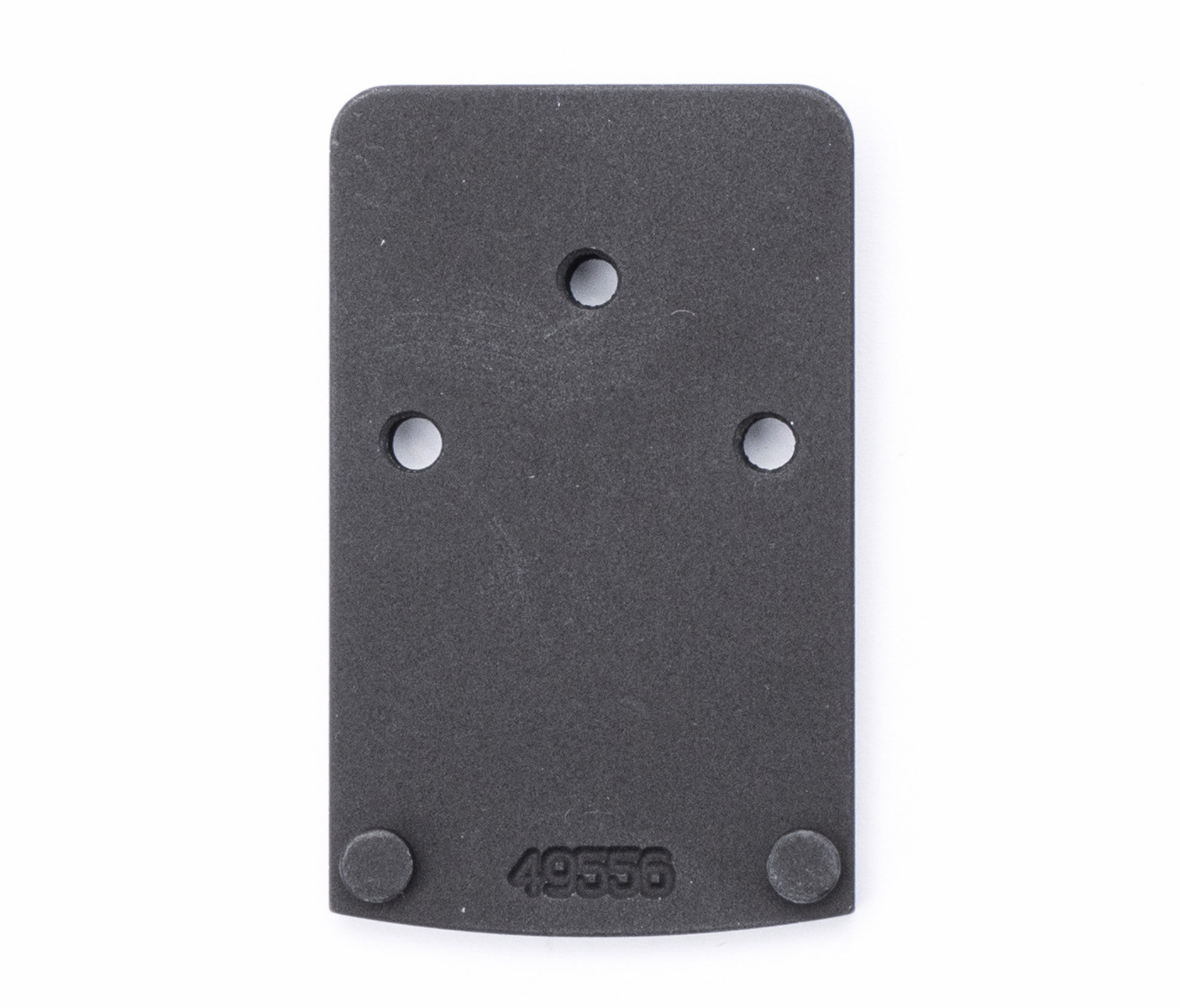

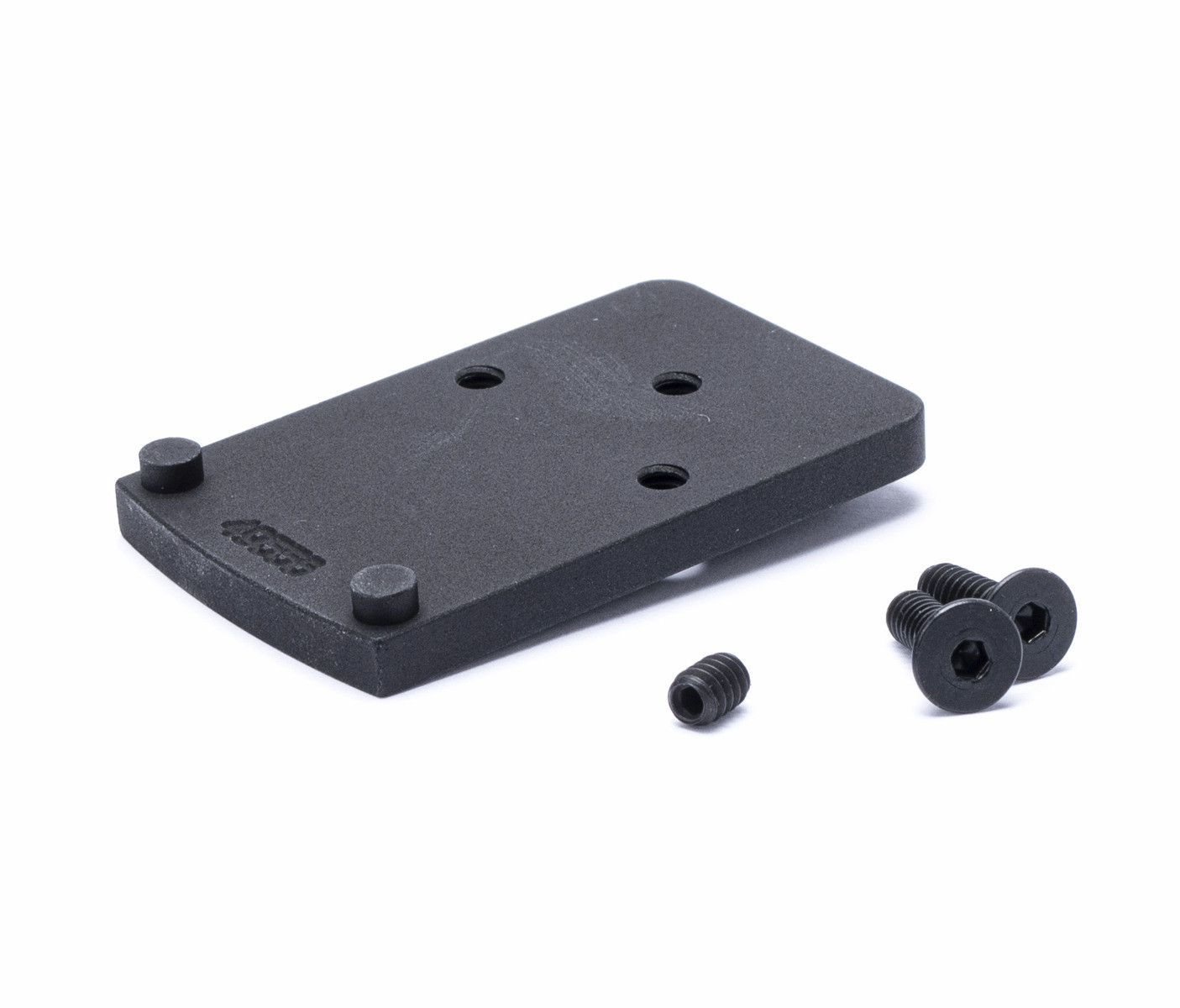

SKU 49556: Fits:
Trijicon RMR
Holosun 407/507
and sights sharing that footprint
Installation Instructions
– Remove the rear sight*

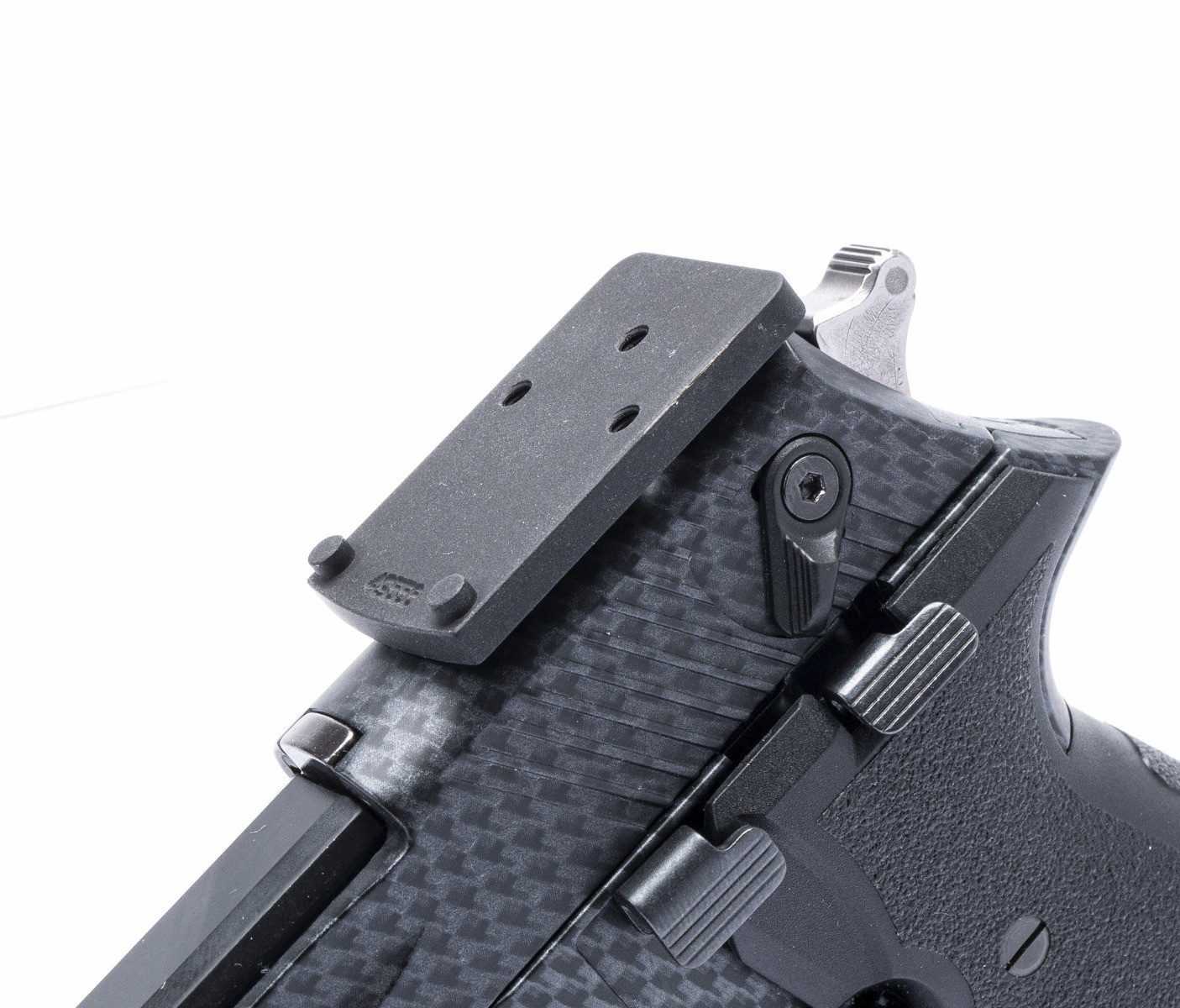

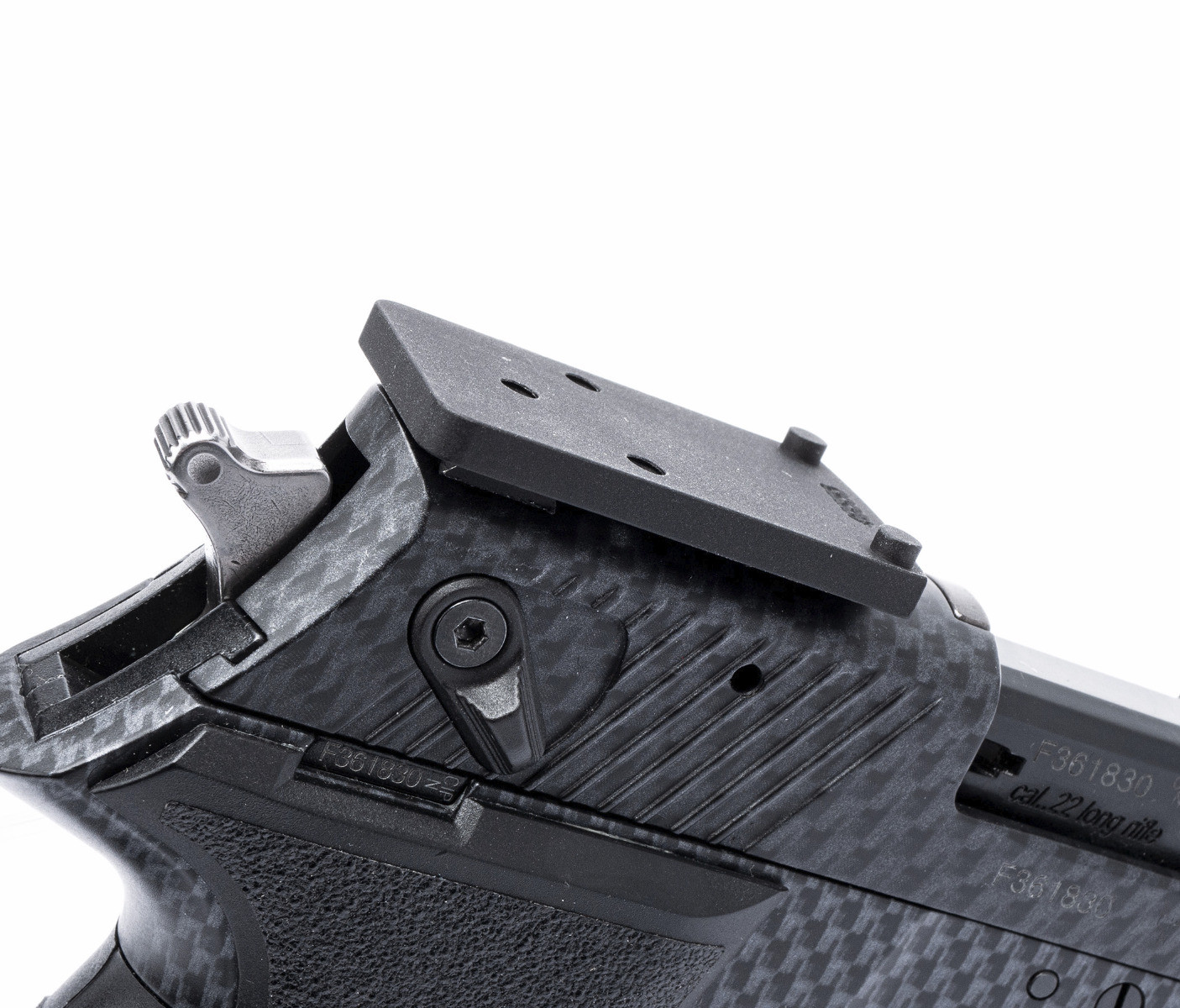

– Install the EGW Sight Mount in the dovetail
– Tighten set screw (if applicable)

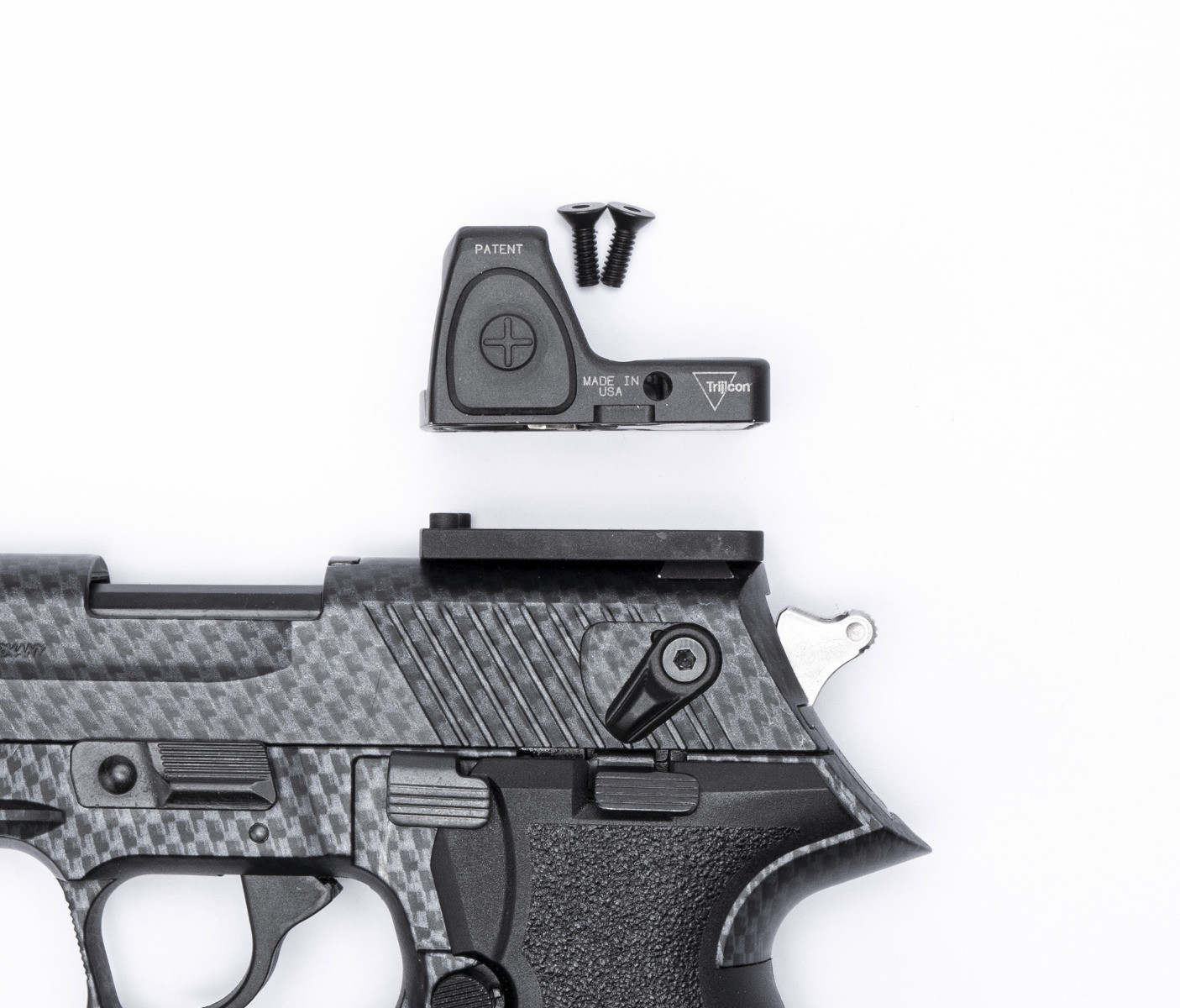

– Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
– Apply blue Loctite to the provided mounting screws
– Torque mounting screws to 15in/lbs
2 Button Head Cap Screws – Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws – Provided for Burris FastFire and Docter Sights
The screws that are included with this mount require a 5/64” allen wrench for installation.
Click here to see a video from Vortex on how to install our red dot base on a slide.
Installation Instructions
– Remove the rear sight*
– Install the EGW Sight Mount in the dovetail
– Tighten set screw (if applicable)
– Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
– Apply blue Loctite to the provided mounting screws
– Torque mounting screws to 15in/lbs
